Type-C Signal Diagram

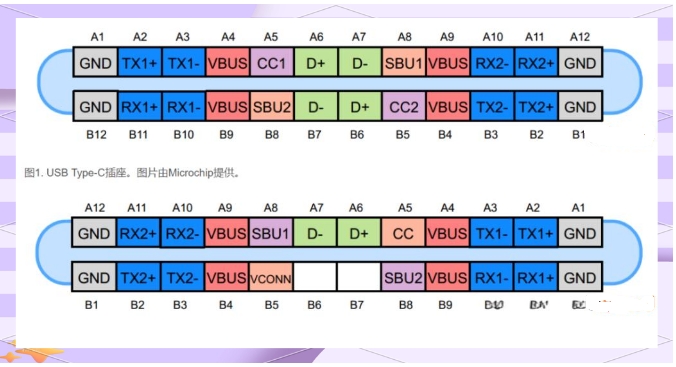

The USB Type-C connector is carefully designed with 24 pins to ensure stable connections and versatility. The diagrams clearly show the pin layout of the USB Type-C socket and plug, providing users with an intuitive reference.
